We are manufacturer of Industrial Oil Filtration Machines of variable capacities of 500 to 5000 lph which can be customized to special capacities if required by the clients. The machines take the impure oil into the system through the inlet ball valve and then pumps it through by a positive displacement pump. A filter prior to this removes solid particles and magnetic particles. The whole machine does the filtration at its best output. We ensures the working and output of each and every machines at our end.
Our Range of Oil Filtration Machines
 1.

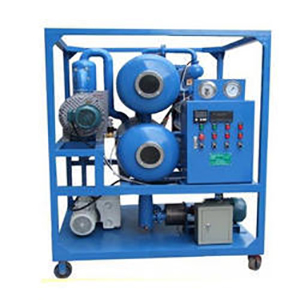

Transformer Oil Filtration Machines
-
We are authorized to deal with Transformer Oil
Centrifugal Filtration Machine of variable capacities of
500 to 5000 lph which can be customized to special
capacities if required by the clients. This plant takes
the impure oil into the system through the inlet ball
valve and then pumps it through by a positive
displacement pump.
-
A filter prior to this removes solid particles and
magnetic particles.
-
After heating the oil up to 60 deg. Celcius it passes
through the cartridge filters, where particles up to 5
microns are filtered.
-
A specially designed vacuum chamber removes moisture,
air and all the gases with the help of vacuum.
-
The oil falls by way of gravity over the media inside
forming a thin film of oil, exposing a larger surface
area.
-
The dissolved moisture and gases are evacuated and the
oil is ready.
Models Available
-
ALFA-PCTM-500
-
ALFA -PCTM-1000
-
ALFA -PCTM-2000
-
ALFA -PCTM-5000
Online Transformer Oil Filtration Machine
ALFA-DOM-TO-500
 2.

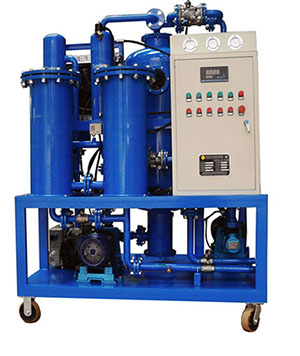

Hydraulic Oil Filtration Machines
Particle filtration of a hydraulic system is usually
sufficient for controlling the level of oil contaminants.
However, sometimes "cutting corners" occurs during the
system's engineering process, which can lead to inefficient
filtration.
-
Cleansing the oil of contaminants is generally
considered to be secondary to the primary functions of
the hydraulic system and thus is often neglected and
underemphasized as a vital part of the design. This can
result in filters performing poorly due to lacking
structural integrity, dirt-holding capacity or
particle-capture efficiency.
-
There are also many ways in which the system could be
inadequate for performing filtration, including its flow
rate, the presence of vibration or if the overall
differential pressure is lost because of the filter's
location within the system. Each of these factors must
be considered for the filtration system to work
effectively.
-
Of course, filtration is only half of the equation.
Contamination control involves not just removing
particles but also keeping them from entering the
system. If more particles are coming into the system
from ingression points like breather points, hatches and
seals than being removed, the system will never be
clean. Therefore, you must have a balance of contaminant
exclusion and contaminant removal methods.
-
If an alternative approach is needed to remove
contaminants from the hydraulic oil, technologies such
as centrifugation, magnetic filtration or a combination
of periodic, portable filtration systems may be
implemented. Although filters can be very efficient,
sometimes they are not enough and must be complemented
with other methods to remove the finer particles. For
instance, with magnetic filtration, ferromagnetic
particles can be captured regardless of their size.
These types of particles often make up nearly 90 percent
of particles suspended in oil.
-
Centrifuges also offer advantages over traditional
filter media. The efficiency of a centrifuge is
consistent throughout its service, and the lower limit
of its particle size trapping capability can be much
less than 1 micron.
-
While several other technologies are available to
enhance the abilities of a typical oil filter, the best
advice would be to thoroughly evaluate the filter system
currently installed and then develop a plan of action
based on the findings.
Models Available
-
ALFA-PCHM-50
-
ALFA -PCHM-1000
-
ALFA -PCHM-2000
-
ALFA -PCHM-5000
 3.
Coolant Filtration Machines
The coolant recovery systems a Fluid Recovery (IFR)
technology for exceptional performance. A high speed 3-phase
disc centrifuge is at the heart of all our systems. Combined
with microprocessor controls, the Patriot utilizes a series
of unit operations including pre-filtration and
pasteurization to remove all solids, tramp oils, odors and
control biological activity.
The system is designed to function as a batch processor
using sump carts or as a central system. The system can
process several thousand gallons per day (gpd), sufficient
to handle most large plants.
Models Available
-
ALFA-PCFM-1000
-
ALFA-PCFM-2000
4. Quenching Oil Filtration Machines
 During
quenching, the oil becomes contaminated with scales, soot &
degradation products, which interfere with the performance
of the oil and may result in unsatisfactory surface
appearance or lower physical properties than specified.
Removal of these contaminants by filtration or centrifuging
is necessary to restore the oil to a satisfactory condition
for trouble free quenching and good product quality.
Advantages
-
Reduced Heat Exchanger Chocking
-
Uniform Heat Treatment across the job
-
Substantial Savings on cost of oil replacement
-
Reduced Job Blackening
-
Reduces manual cleaning of job after Heat Treatment
Models Available
-
ALFA-PCQM-1000
-
ALFA-PCQM-2000
-
ALFA-PCQM-5000
5. Furnace Oil Filtration Machine
 It
has a 100% consumable free centrifuge which has been
specially designed and developed for Furnace oil cleaning.
Centrifuge rotates at 3000 ? 4000 RPM. The centrifuge can
hold up to 10 Kg of sludge. It removes impurities upto 0.2
microns in size.
The system has no recurring cost and no replacement
component. It is absolutely maintenance free. Centrifuge
requires periodic cleaning. Cleaning interval is fixed based
on experience depending upon the degree of impurities
present in FO/ LDO.
Advantages
1. No Replacement Element, No Recurring Cost.
2. Reduced Soot Formation in Heater / Boiler Tubes.
3. Improved Burner Efficiency. ( Reduced Smoke Level )
4. Reduced Nozzle Choking. (No Need of Frequent Nozzle
Cleaning)
5. Reduced Fuel Consumption. ( Savings on Fuel Cost )
Models Available
|
