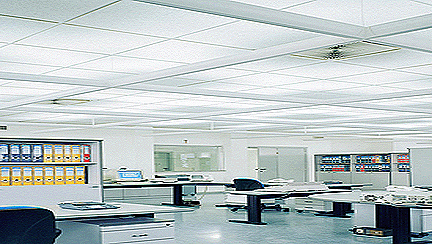

AMF-THARMATEX FINE STRATOSis a lightly textured sanded tile with a clean, crips appearance. Micro perforation give high sound absorption while the plain tile offers a contemporary ceiling design.
AMF - THERMATEX STAR is a high density mineral Ceiling tile with a smooth white surface and micro-perforations.A bright elegant appearance is combined with high ligh reflectance and good acoustic absorption.
Alfa Systems & Services the channel
partner of Ecoflex AMF India Pvt. Ltd
THEMATEX
Ceiling tiles made from new generation
bio-soluble mineral wool, clay and starch
with excellent fire resistance and acoustic
performance.
Suspension system
CONCEALED SYSTEM
Grid concealed, panels non-removable GN
panels removable AW/GN
FIRE PROTECTION SYSTEM
An independent ceiling giving
fire protection from above and below.
EXPOSED SYSTEM
For 15 or 24 mm wide sections, demountable ceiling.
FIRE PROTECTION SYSTEM
An independent ceiling giving fire protection from above and below.
FREE SPAN SYSTEM
Clear span plank system, with exposed or concealed suspension.
FIRE PROTECTION SYSTEM
An independent ceiling giving fire
protection from above and below.
BANDRASTER SYSTEM
With parallel sections 50-150mm wide and concealed cross sections
FIRE PROTECTION SYSTEM
An independent ceiling giving fire protection from above and below
Technical Performance
Class 1 Surface Sread of Flame to BS 476: Part 7 : 1987. Class B 1 as DIN EN 4109, part 1
Sound absorption as per BS EN ISO 354: 1993 DIN EN 4109 and DIN EN 52210
Thermal conductivity =0.052-0.057 W/mK
Sound attenuation as per BS EN 20140-9: 1994, DIN EN 4109 and DIN EN 52212.
Up to 90 %
Humidity resistant panels up to 95 % RH
Dimension & Thickness
STANDARD SIZE
600 X 600 / 625 X 625 mm / 600 X 1200 mm / 625 x 1250 mm
PANEL SIZE
300 X 1200 mm - 2500 mm/312.5 X 1250 mm - 2500 mm
400 X 1200 mm- 2500 mm, other sizes to order
THICKNESS/ WEIGHT
15 mm(C.4.5 Kg/M) / 19 mm (C.5.7 Kg/M) / 40 mm (C.12 Kg/M)
COLOR
White similar to RAL 9010, other color available to to order
